Product information
1. What is Star-CCM+?
Star-CCM+ is Siemens' most powerful multiphysics fluid dynamics (Computational Fluid Dynamics - CFD) analysis tool.
Star-CCM+ allows users to simulate products under real operating conditions.

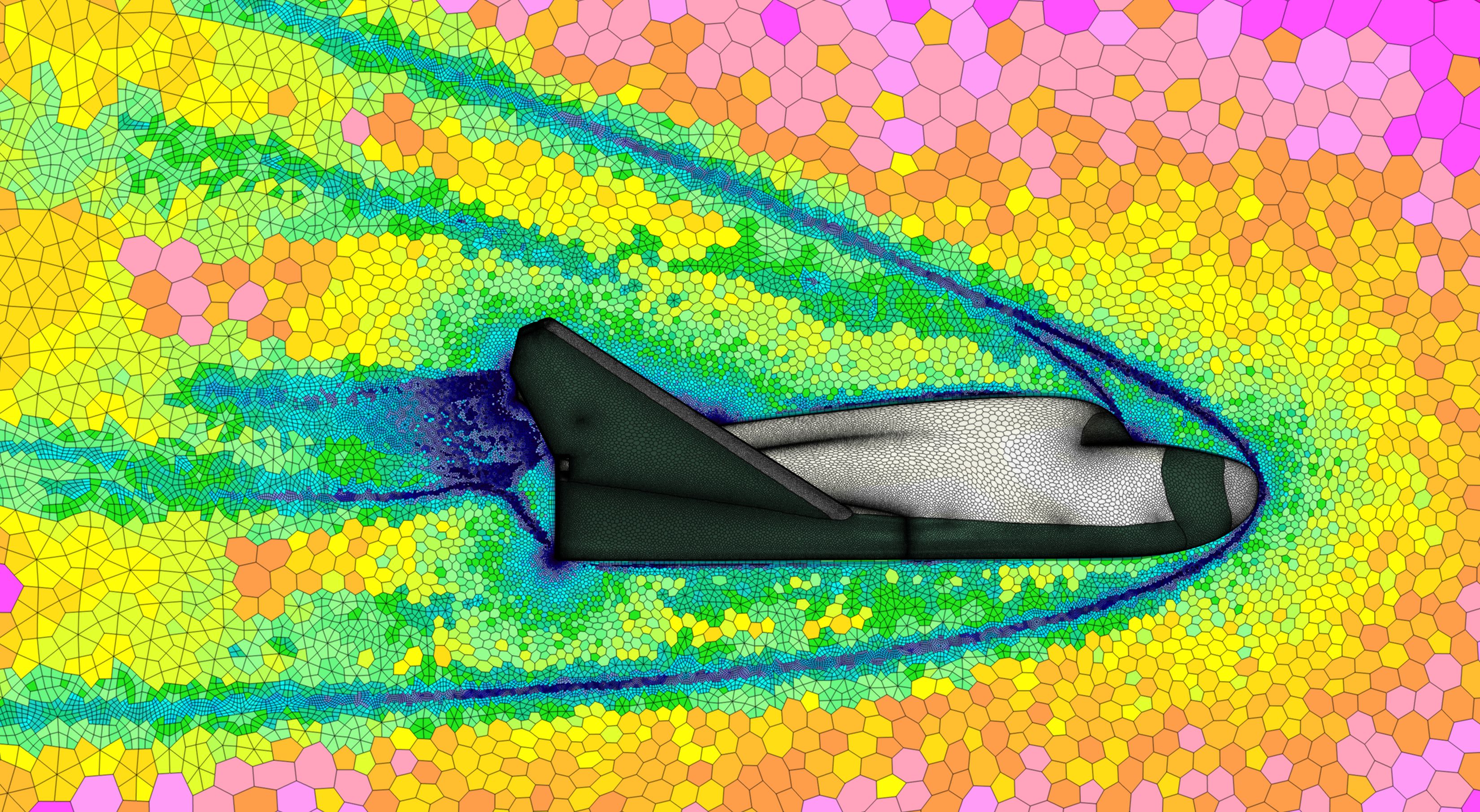

The single environment that integrates everything from CAD editing and automatic meshing to post-processing and design exploration helps engineers spend more time exploring and coming up with new designs.
2. Features
Star-CCM+ is capable of simulating the flow of compressible, incompressible streams. In this case, Star-CCM+ has a full set of material models available for the study of Newtonian and non-Newtonian flow fields.
- Heat transmission and radiation model
Star-CCM+ fully supports heat transfer analysis in both solid and liquid media. Supported features include:
- Conjugated heat transfer
- Natural convection
- Sealed radiation
- Solar radiation
- Heat exchange model
Star-CCM+ offers a complete set of puppet models to meet your simulation needs.
- Spalart-Allmaras
- SST, Wilcox 2006 k-w
- Realizable k-ε, RNG k-ε, Standard k-ε, …
- Detached Eddy Simulation (DES)
- Large Eddy Simulation
- Reynolds Stress Turbulence
StarCCM+'s multiphase flow simulation capabilities allow two-fluid flow simulation with a variety of models.
- Dispersed Multiphase (DMP)
- Eulerian Multiphase (EMP)
- Fluid Film
- Lagrangian Multiphase (LMP)
- Mixture Multiphase (MMP)
- Volume of Fluid (VOF)
StarCCM+ allows you to build a custom solution for fire simulation with powerful features
- Flamelet model
- Multiphase flow and surface reaction
- Granular reaction model
- Fire reaction model
- Specialized models
- Simulate moving objects
Simulate multiple physics and motion in your CFD simulations in a single environment
- Fluid–solid dynamic interactions
- Absolute solid motion for CFD
- Reference coordinate system
- Export data to structural simulation solutions
3. Application

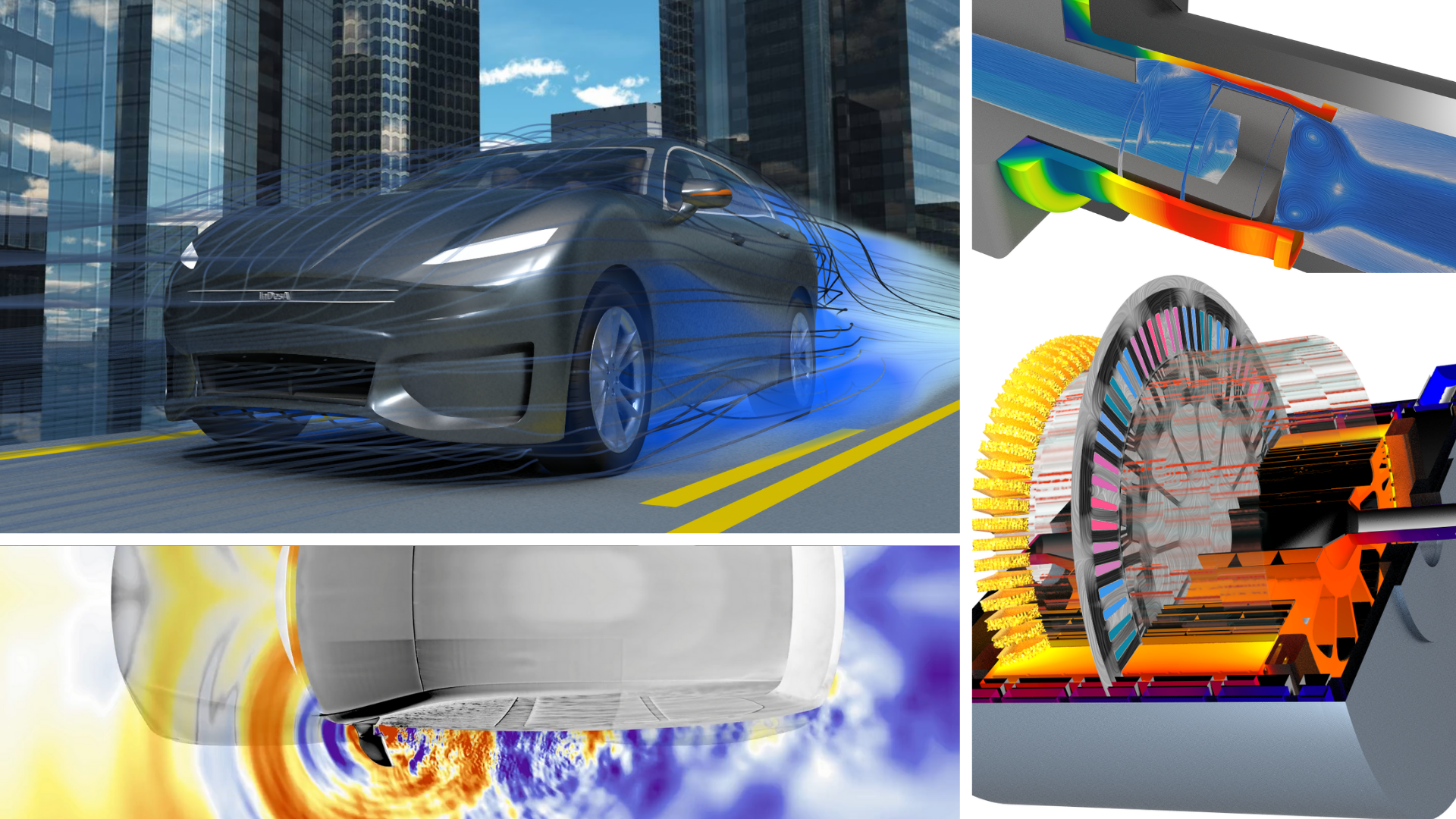

With powerful features and tools in the CFD field, StarCCM+ is applied in many fields such as:

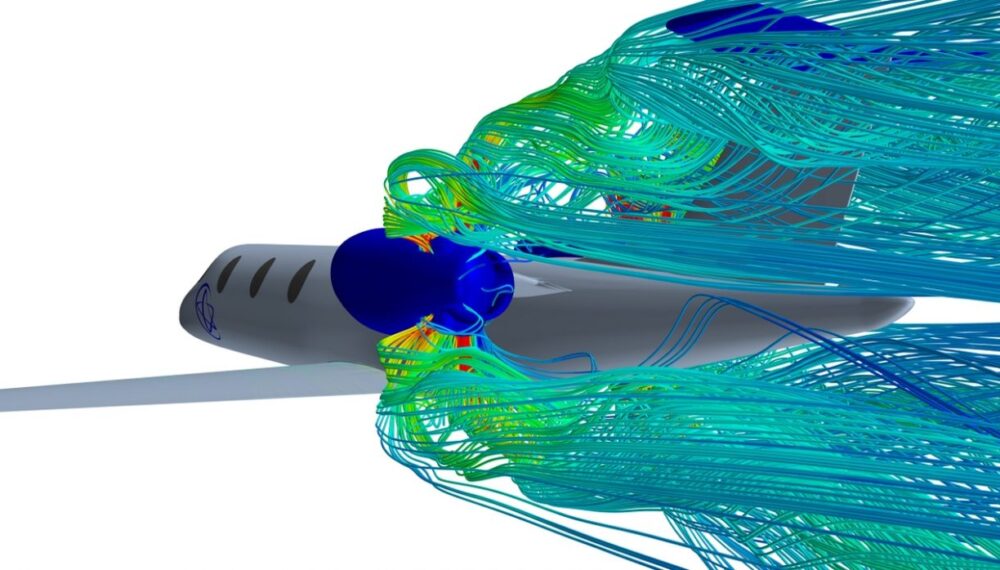

- Air

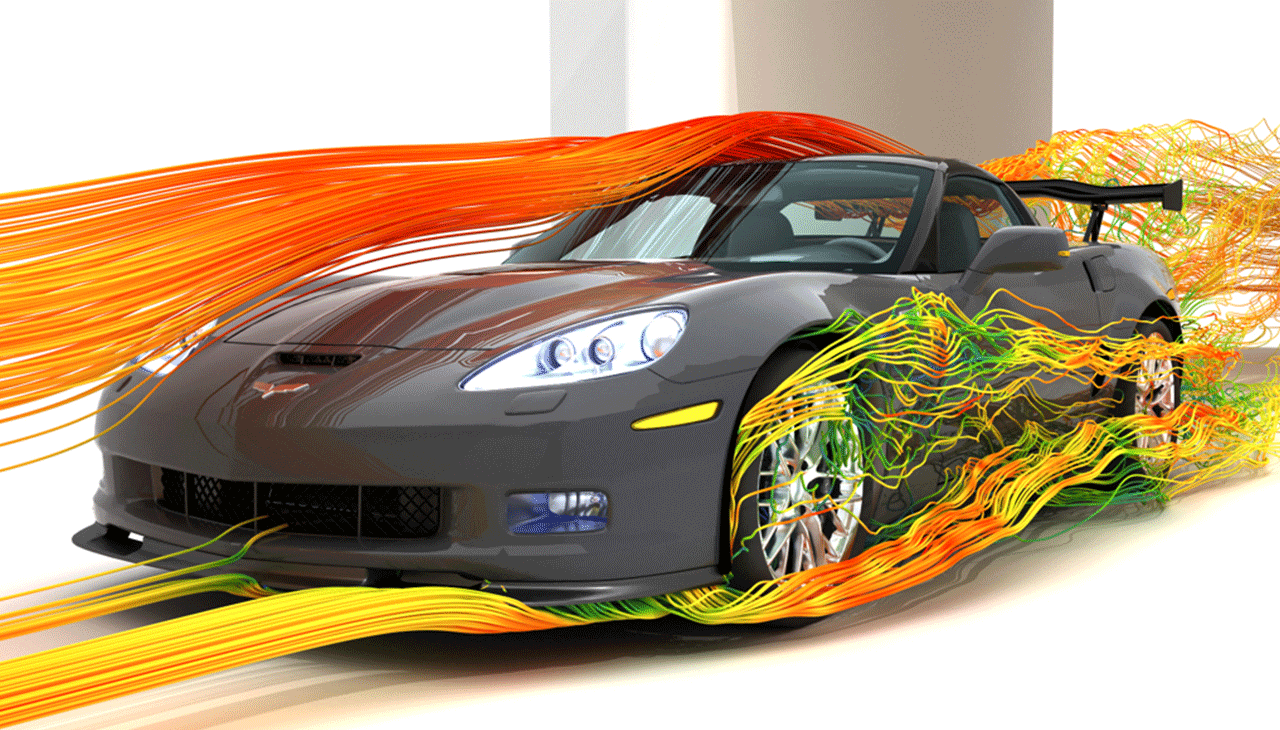

- Car
- Simulate Li-ion battery
- Cools electronic devices
- Internal combustion engine
